MOTOR H400

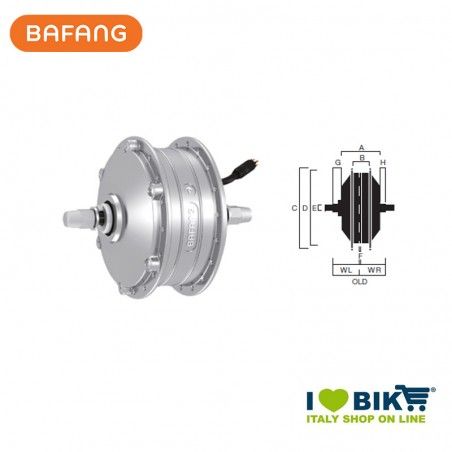

Hub Motor Bafang FM G32.250.V, 36V 36 Holes
| Original Ref. | FM G32.250.V | |
| Article | 54 716 1100 | |
| Use recommendation | E-CITY | |
| Size | A | 78 mm |
| B | 41 mm | |
| C | 131 mm | |
| D | 119 mm | |
| E | 2-3 / 8-26UNF-2A | |
| F | 0 | |
| G | 8.5 mm | |
| H | 13.5 mm | |
| Hub stop | 100 mm | |
| WL | 50 mm | |
| WR | 50 mm | |
| Main informations | Wheel sizes (Inch) | 26/700C/28 |
| Construction | Gear drive | |
| Voltage (DCV) | 36v | |
| n0 (Rpm) | 240/275 | |
| Max Power (W) | 250 | |
| nT (Rpm) | 205/235 | |
| Max Torque (N.m) | 30 | |
| Efficiency (%) | ≥ 80 | |
| Color | Black / Silver | |
| Weight (kg) | 2.4 | |
| Noise level (dB) | < 50 | |
| Operating temperature | -20 - 45 °C | |
| Mounting parameters | Brake | V-Brake |
| Hub width (mm / OLD) | 100 | |
| Max. sheath diameter (mm) | 131 | |
| Cable routing | Shaft Side, Right | |
| Cable length (mm), connection type | 250 G9.1 |
|
| Hub holes | 36Hx13G | |
| Tests & Certifications | IP level: IP 65 Certifications: ROHS / CE Spray Test Standard(h): 96 | |
